ASO That Converts: A Screenshot-First Playbook for the App Store and Google Play

See the funnel the stores see

Before you design anything, decide which "conversion" you mean, because different tools and reports use different steps of the funnel.

Apple defines "App Store conversion rate" in App Analytics as Total Downloads divided by Unique Impressions. Apple also clarifies what counts as a Unique Impression: when a customer views your app on tabs like Today, Games, Apps, Search, or on your product page. [3] This matters because your screenshots influence both behaviors: getting people from search/browse into your page, and getting them to download once they are there.

Benchmarks can be unintuitive unless you keep the denominator in mind. For example, AppTweak reports that in the first half of 2024 the average conversion rate across categories in the US was about 25% on the App Store and 27.3% on Google Play, and they also highlight that rates vary dramatically by category and context. [4] AppTweak also notes that conversion rates above 100% are possible on the App Store when installs exceed page views, implying many users download directly from search or browse results without visiting the product page. [5]

So here is a practical way to map your work:

Two platform mechanics that change how you prioritize assets:

Apple states that app previews always appear before screenshots on iPhone, iPad, Mac, and Apple TV, even if you reorder media. [7]

Google states that screenshots can show up across Google Play surfaces (like search or the homepage), and when a preview video is present, screenshots appear after it. [8]

That means: if you have a video, your screenshot set still matters, but your "first screenshot" is not always the first media experience. Using still screenshot style placeholder image for your video can make these cohesive and logical.

Write your screenshot story like a mini sales page

Great ASO screenshots do not "show screens." They sell outcomes, then use screens as evidence.

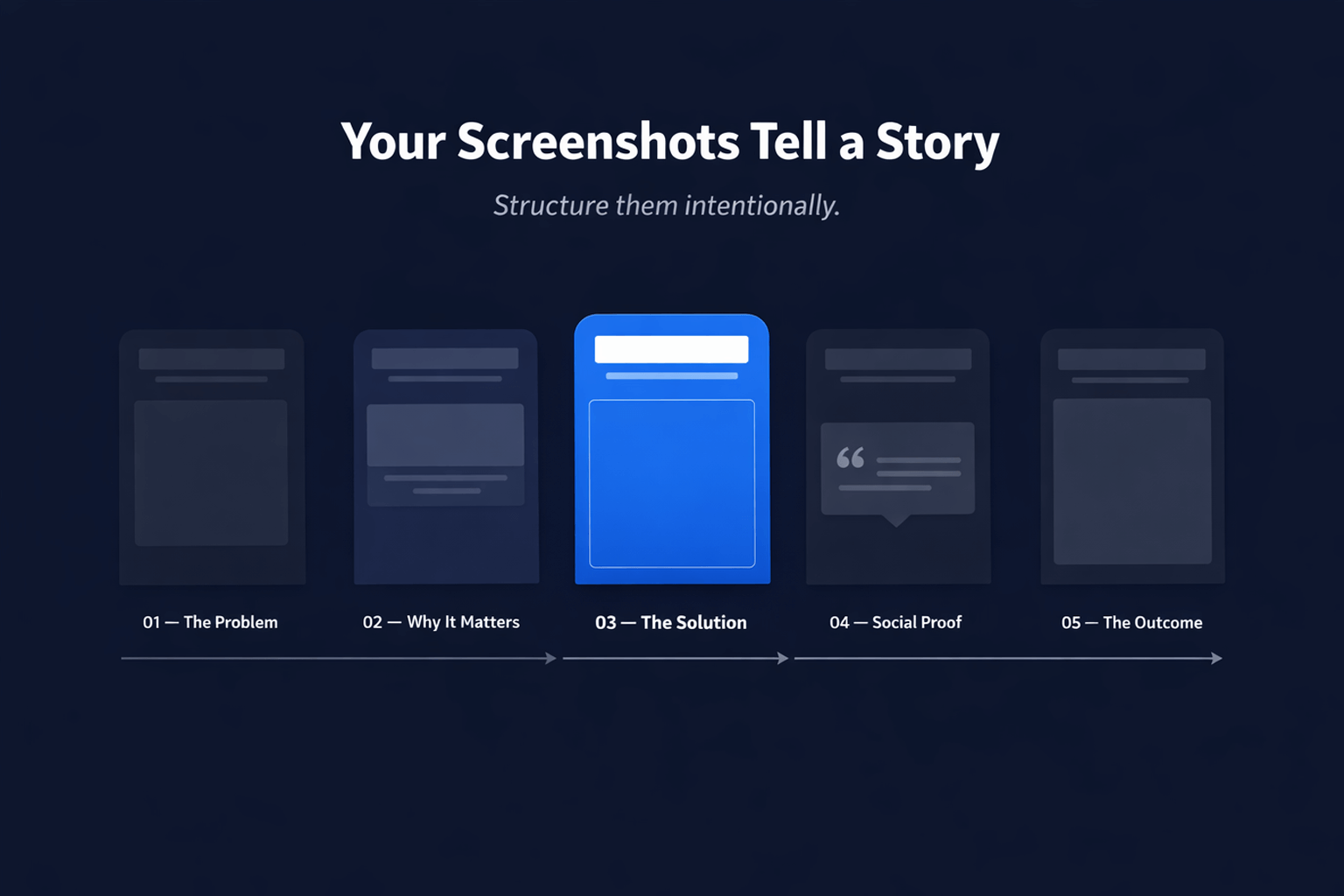

A strong screenshot set works like a storyboard: lead with the user’s situation, show the promised outcome, then use your UI as evidence. App Radar frames screenshots as a way to narrate your app’s story and create a clear impression of features and functionality. [6] That direction aligns with classic UX communication advice: Nielsen Norman Group illustrates that stakeholders (and users) respond better when you present an empathetic story of a person and a situation, rather than walking screen-by-screen through features. [9]

A simple script that works across most categories is:

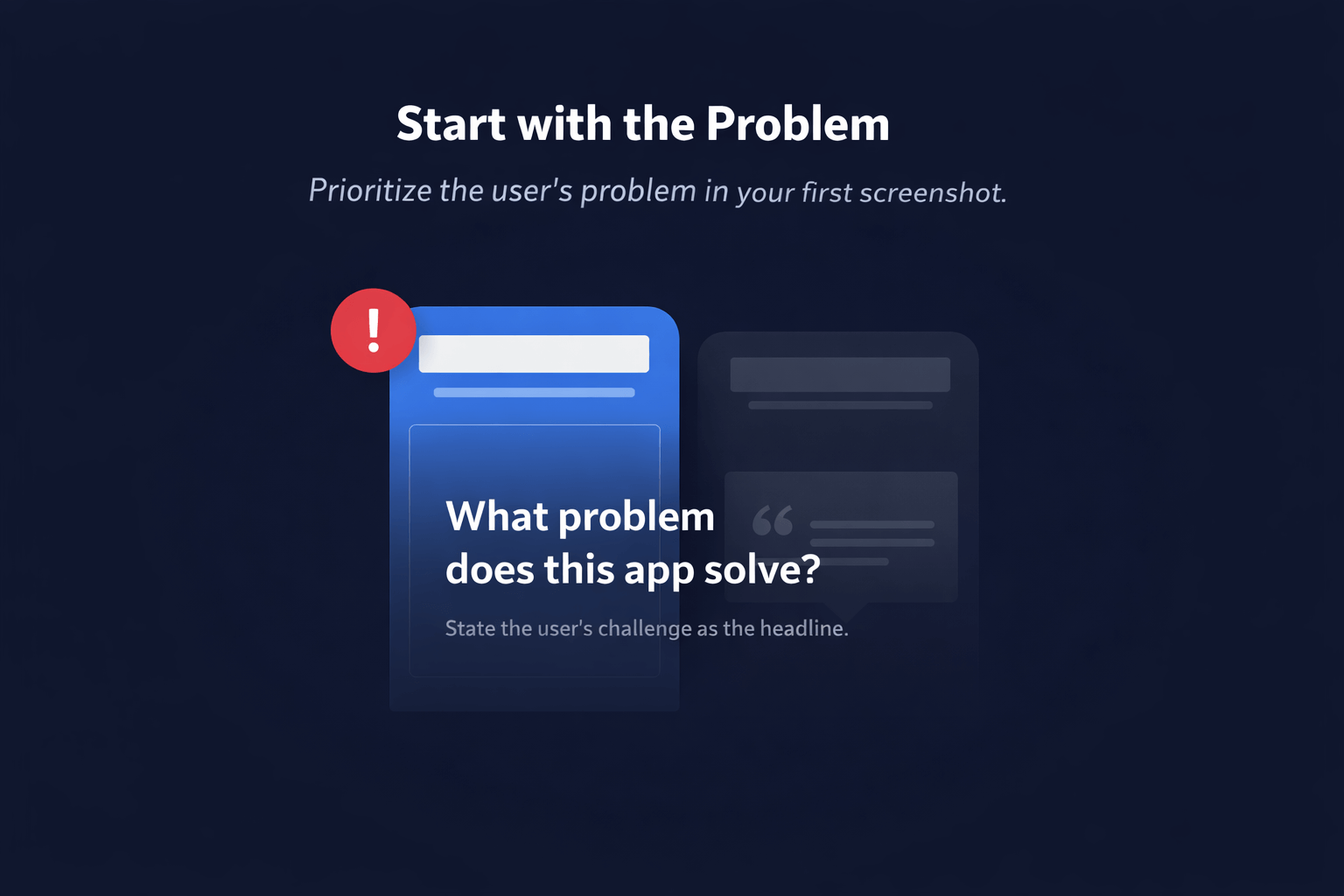

Frame 1: The problem or desire (the hook).

Make it immediately about the user, not your product. If the user is already searching for a solution, you want instant recognition: "This is for me."

Frame 2: The promise (the outcome).

Show the "after" and make it feel real with a time cue or unit. "Ice cold lemonade in your hands" is clearer than "yummy lemonade". If you can’t state the promise in one sentence, your app may be too broad for a single listing. Narrow the promise by audience or use case, then use personalization features later (more on that below).

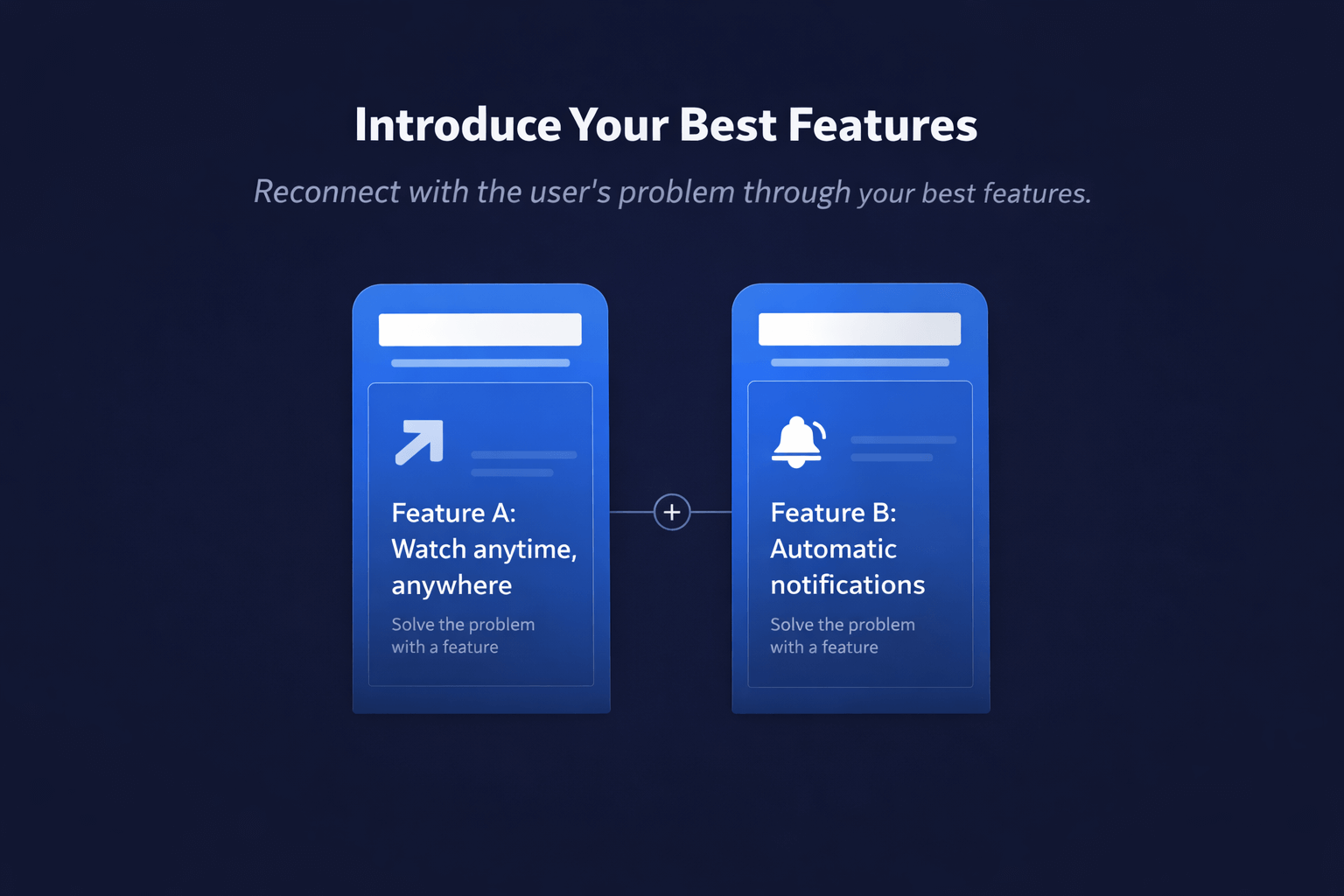

Frame 3: The fastest win (hero feature).

Pick the feature that delivers the promise with the least effort. This is where you show the cleanest UI screen in your app.

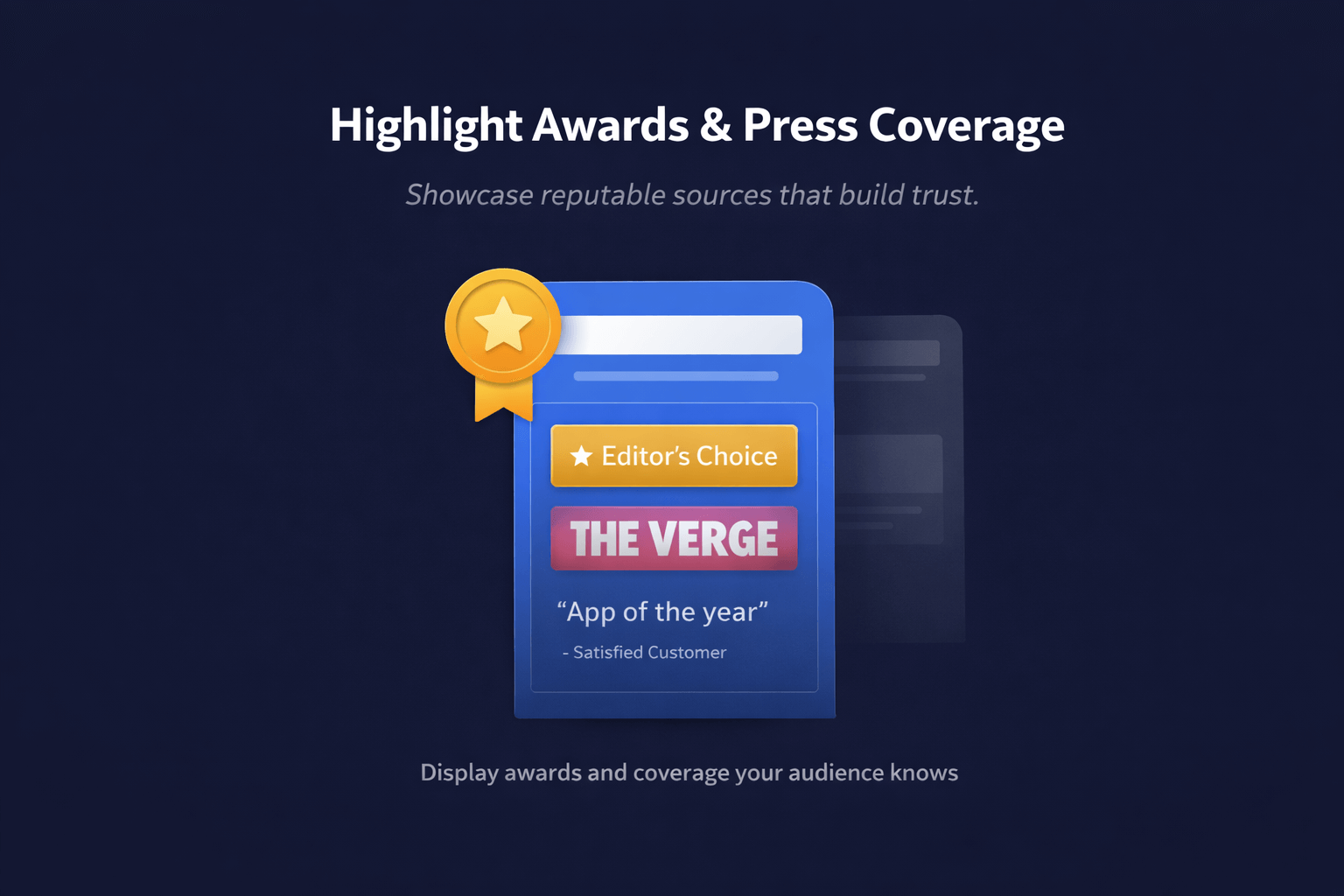

Frame 4: Proof (trust).

This is where many teams try to add reviews, awards, or "#1" claims. Social proof is powerful because people look to others when uncertain. Robert Cialdini’s classic phrasing is: "We view a behavior as more correct in a given situation to the degree that we see others performing it." [10]

Naturally your app store user review rating assists here, showing how important a string rating score is to gain immediate trust.

But you must implement proof differently depending on store:

On Google Play, screenshots with taglines have strict guidance: do not include content suggesting store performance/ranking, accolades/awards, user testimonials, price/promotions, and avoid call-to-action text like "Install now." [11] So on Google Play, your safest "proof" is usually in-product proof: recognizable UI patterns, familiar integrations, privacy cues users can verify, or specific capability demonstrations. Let the store’s built-in rating display do its job rather than recreating it in your images.

Frame 5: How it works (reduce uncertainty).

A simple 3-step flow works well. On Google Play, keep overlay text modest: they warn that extra text can be cut off on some surfaces. [8]

Frame 6: Secondary feature (expand appeal).

Now you can sell to a second persona: power users, teams, creators, parents, etc.

Frames 7 to 8: Objection handling + "close."

Address what prevents conversion: setup time, privacy, offline access, pricing clarity, device compatibility. Then finish with an outcome reminder (and optionally a time cue). For Google Play, keep it benefit-oriented rather than a direct call to action. [8]

A useful constraint: if you cannot explain why each frame exists, remove it.

Hick’s Law formalizes the idea that more choices increase decision time; in practice, extra messages slow users down. [12]

Design rules that make your message readable in two seconds

Your design job is not to decorate screenshots. It is to make the story legible at phone size, at speed.

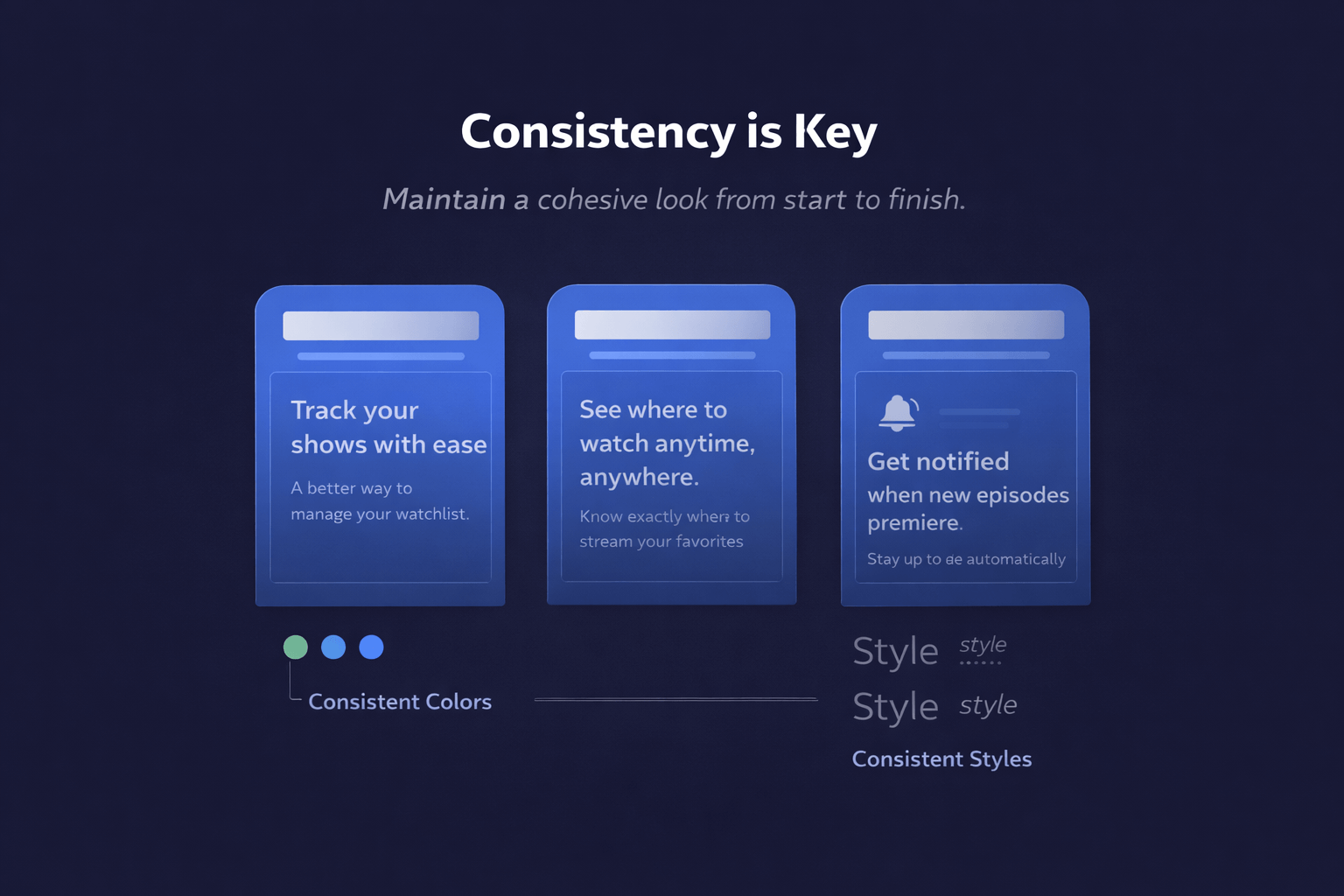

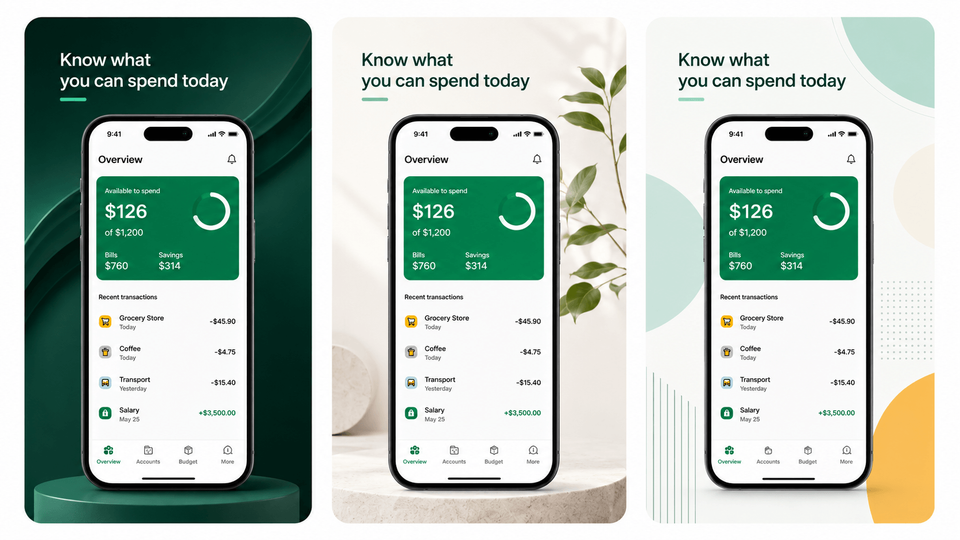

The highest-performing screenshot sets usually share the same traits: a tight palette, a small set of text styles, deliberate negative space, and consistent layout. These choices are not just aesthetic. They reduce cognitive load and make your message readable at speed:

Put those together and you get a screenshot rule that consistently works:

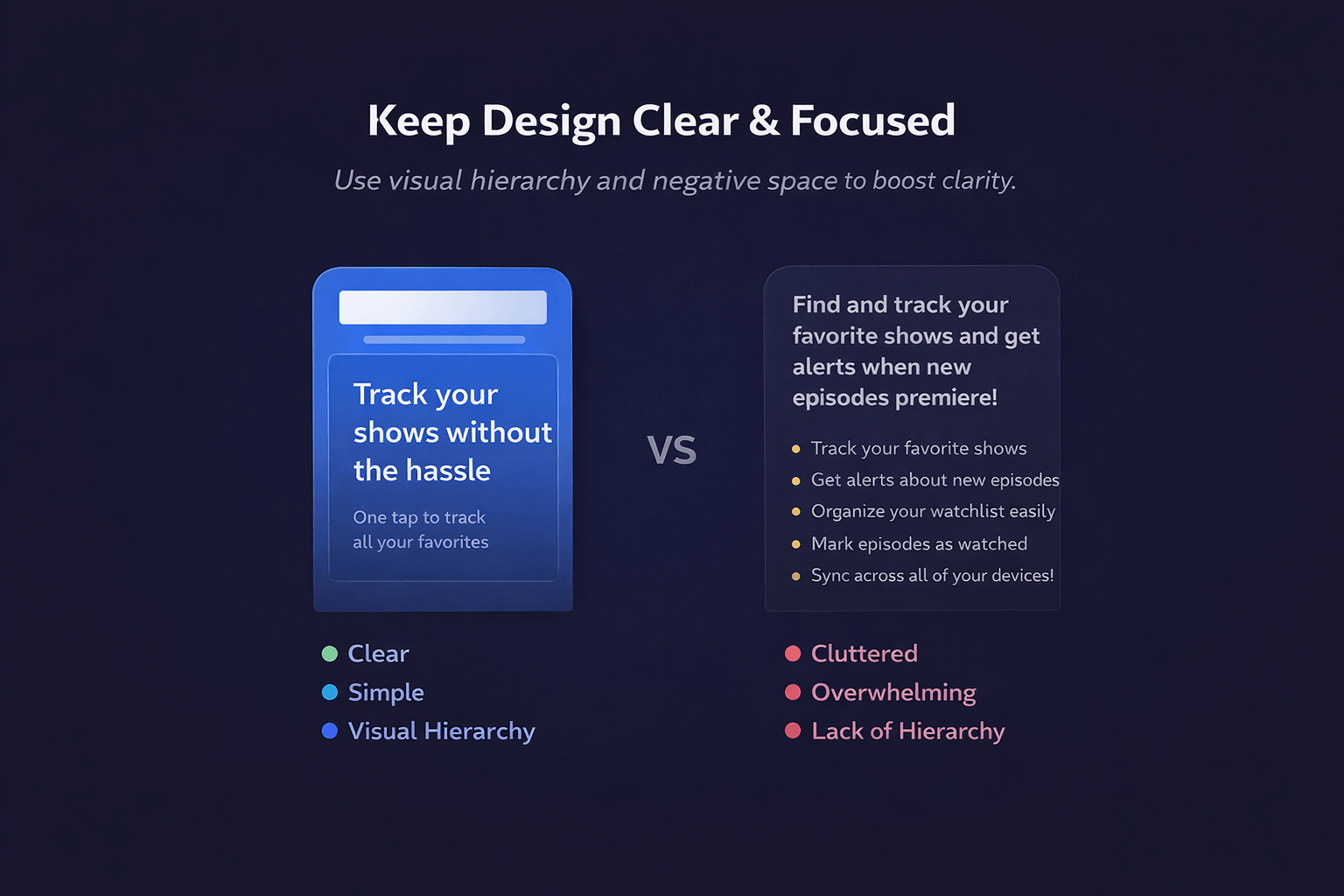

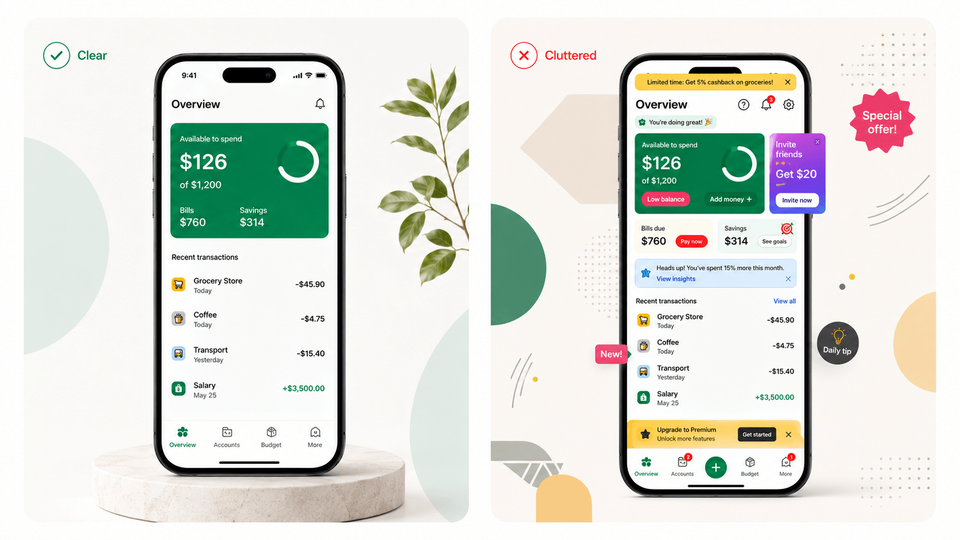

Here is a visual of what that difference looks like in practice.

Focused vs cluttered screenshot mockups

Now apply platform-specific "legibility constraints":

A practical set of design rules that survive both stores:

• Use a strict visual hierarchy. Apple’s Human Interface Guidelines emphasize hierarchy as a principle for distinguishing what matters. [17]
• Make the headline big enough to read on the smallest preview and keep it short, usually one clause. If the headline wraps into three lines, you are arguing with the user’s thumb.
• Respect negative space. White space is the empty space around and between elements, and it can improve effectiveness by increasing focus and clarity. [18]
• Be intentional with "beauty." The aesthetic-usability effect is the phenomenon where people perceive more attractive designs as easier to use; Laws of UX summarizes that users tolerate minor usability issues more when design is aesthetically pleasing. [19]
• Avoid "trust debt." Google Play’s policies emphasize honesty and prohibit deception; they explicitly require that metadata, including screenshots, precisely reflect app functionality. [20]

One more rule that often gets missed: if your UI is consistent across device sizes and localizations, Apple says you can upload only the highest resolution screenshots and they will scale down automatically. [7] That is a workflow advantage: spend time polishing one set, then add device-specific sets only when a layout genuinely differs.

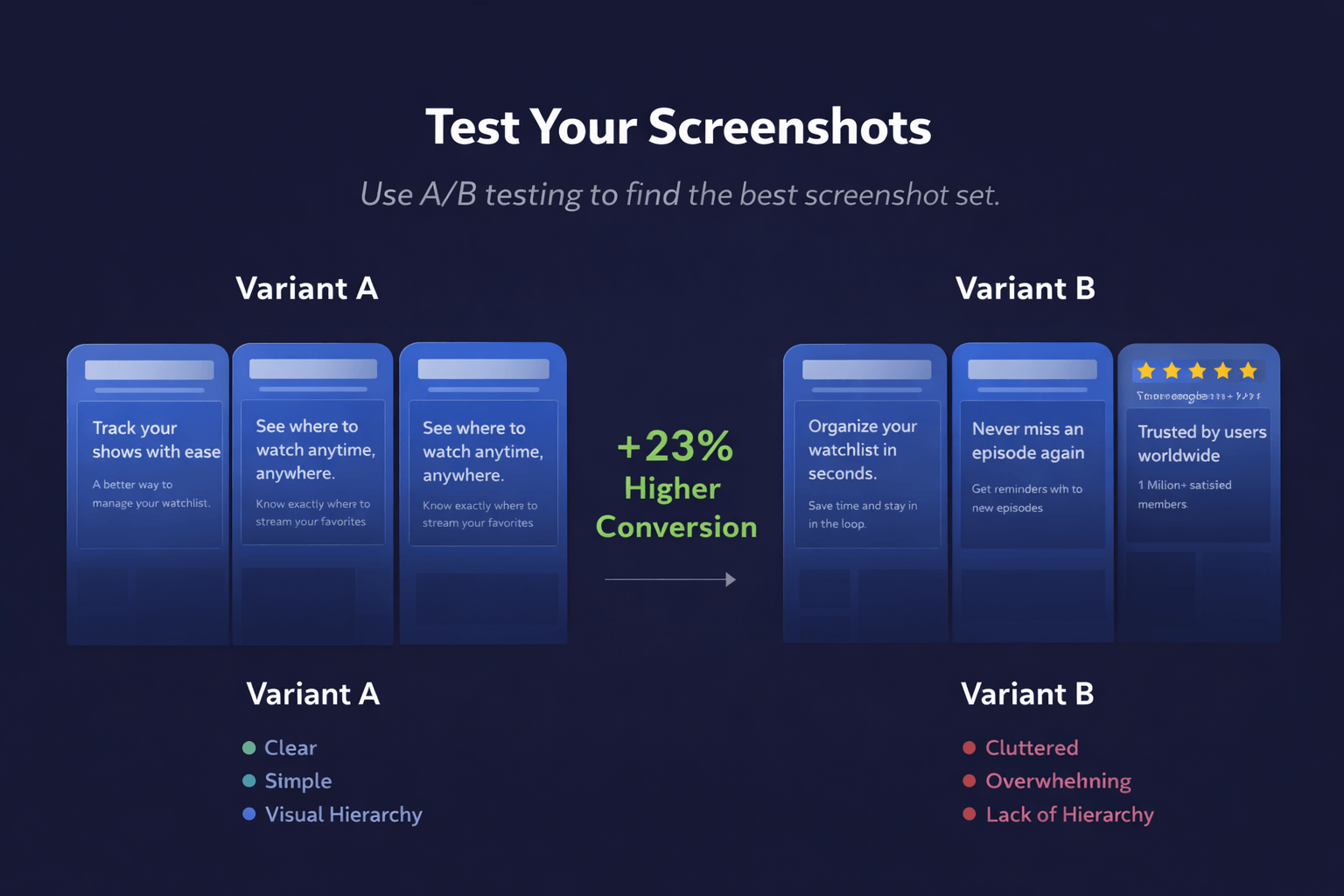

Make it measurable with experiments, not opinions

Your screenshots are a hypothesis. You should treat them like one.

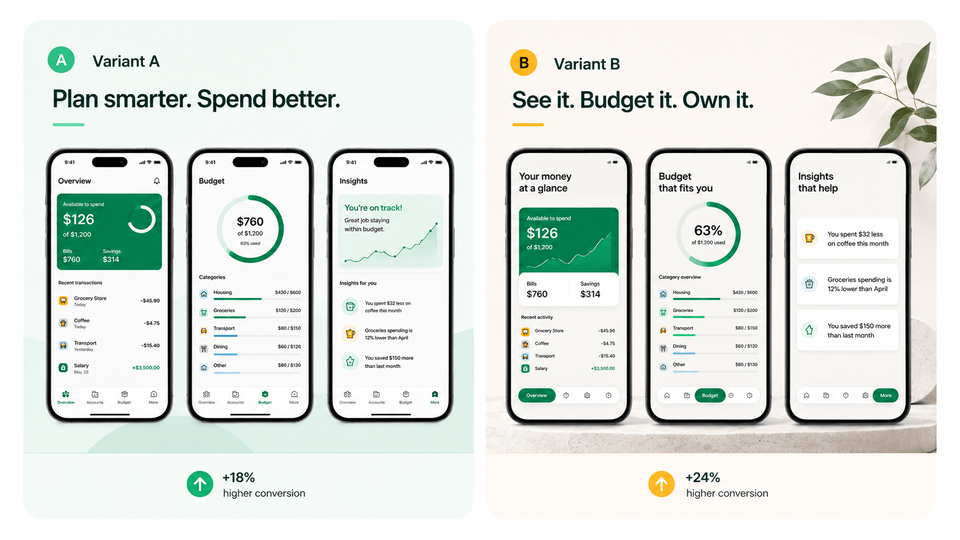

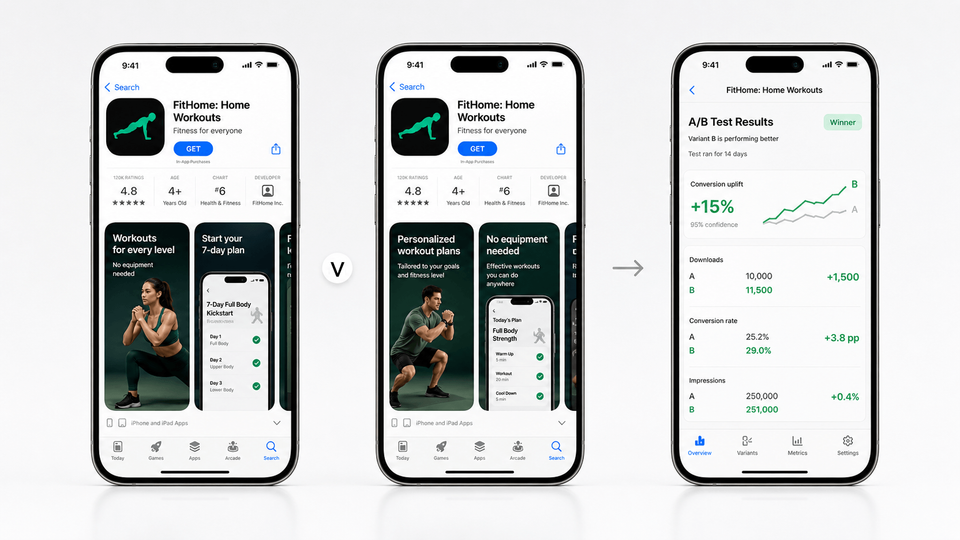

Apple’s Product Page Optimization lets you compare variants of app icons, screenshots, and app previews, test up to three alternate versions against your original, view results in App Analytics, and apply the winning treatment. [21] Apple even suggests test ideas like highlighting culturally relevant content for a specific localization to see if downloads increase in that location. [21]

Google Play’s Store Listing Experiments are designed to run A/B tests on store listing text and graphics, and they promote localized experiments because users respond differently around the world. [22]

A clean testing protocol for screenshot sets:

The payoff can be meaningful even with small changes. In one Sensor Tower case study, simply reordering App Store screenshots to put a key feature first increased installs by 6.4% compared to the control. [25] The moral is not "always put Feature X first." The moral is: order is part of the message, so test it.

One Apple-specific operational detail: Unless you use Product Page Optimization [2], you must create a new version to update screenshots. [7] That makes it even more valuable to storyboard carefully before you submit, and to queue "next test" assets early.

Personalize by intent, locale, and campaign while staying compliant

Too many listings try to talk to "everyone." The stores now give you tools to talk to specific audiences without creating new apps.

On Apple, custom product pages let you create additional versions of your product page to highlight specific features or content. [26]

On Google Play, custom store listings let you tailor your page to different user segments. Google explicitly describes targeting by country, pre-registration status, search keywords, or directing users via a unique URL or Google Ads campaign. [27] Google also highlights keyword-based tailoring and notes that Play can provide keyword suggestions to speed listing creation. [28]

This is the "better than generic" approach:

Localization is not only translation. It is relevance.

Google explicitly recommends localizing overlay text as appropriate, and separately notes that custom store listings are not automatically translated, so you should add translations for targeted languages. [30]

Apple describes how missing localized previews fall back to the next best available language, reinforcing that language completeness can affect what users see. [7]

Finally, compliance is not optional and should shape your "social proof" tactics:

Google Play disallows misleading or inappropriate metadata and specifically includes screenshots in that definition. [31]

Google’s deceptive behavior policy also requires screenshots and other listing elements to precisely reflect functionality and prohibits mimicking OS warnings. [32]

Google’s screenshot guidelines discourage testimonials, awards, and ranking claims as overlay content and caution against calls to action. [8]

If you want proof on Google Play, earn it through clarity and authenticity, and let ratings and reviews do the social proof work in the UI that Google provides.

A complete workflow, plus screenshot scripts you can reuse

Here is a practical end-to-end process you can run every time you ship a feature or enter a new market.

Produce a screenshot set in one pass

Pick one audience and one job-to-be-done. Your audience is not "everyone who might install." It is one intent cluster.

Write your first two headlines before opening a design tool. If you cannot write Frame 1 and Frame 2 in plain language, the design will not fix it.

Storyboard 8 frames. Use 8 as a default because Google Play supports up to 8 screenshots per device type and Apple supports up to 10. [8]

Capture clean UI. Keep status bar distractions out where possible; Google explicitly advises editing excess elements in the notification bar. [8]

Design overlays with restraint. On Google Play, keep taglines minimal and do not add disallowed "proof" overlays. [11]

Write alt text for accessibility. Google explicitly recommends adding alt text and gives guidance for writing it concisely. [8]

Upload, measure, test. Use Apple Product Page Optimization and Google Store Listing Experiments where possible. [2]

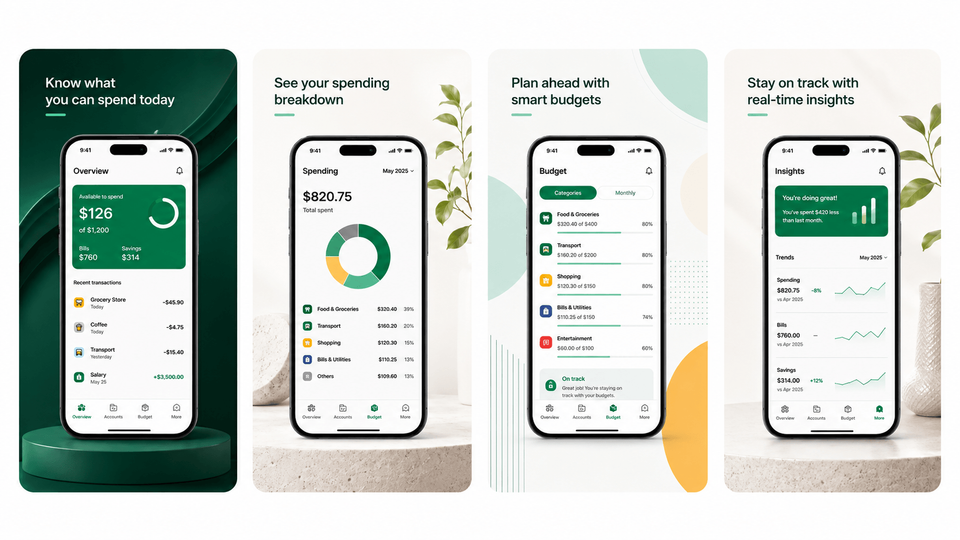

Here is a storyboard visual you can copy into your internal docs and use as your scripting template.

Example storyboard for an 8-screenshot set

Screenshot script template

Use this as a "fill in the blanks" starting point. Write the script first, then design.

## Screenshot set script (v1)

Target audience:
Primary intent keyword(s):
Primary objection to address:
Concrete unit to anchor value (full set, release, localization rollout, variant):

Frame 1 (Hook: problem or desire)
Headline:
What the UI shows:
Proof inside the UI (if any):

Frame 2 (Promise: outcome)
Outcome headline (include a unit or time cue):
Before → after phrasing (one line):
What the UI shows:

Frame 3 (Hero feature: fastest win)
Headline:
What the UI shows:
What makes it faster/easier than alternatives:

Frame 4 (Trust: reduce risk)
Headline (policy-safe for the store):
What the UI shows:
Privacy/security/support cue (only if true):

Frame 5 (How it works: 3 steps)
Headline:
UI screenshot(s) to use:

Frame 6 (Secondary value)
Headline:
What the UI shows:

Frame 7 (Objection handler)
Objection:
Headline:
What the UI shows:

Frame 8 (Close: benefit reminder)
Headline (no "Install now" style CTA on Google Play):
What the UI shows:
